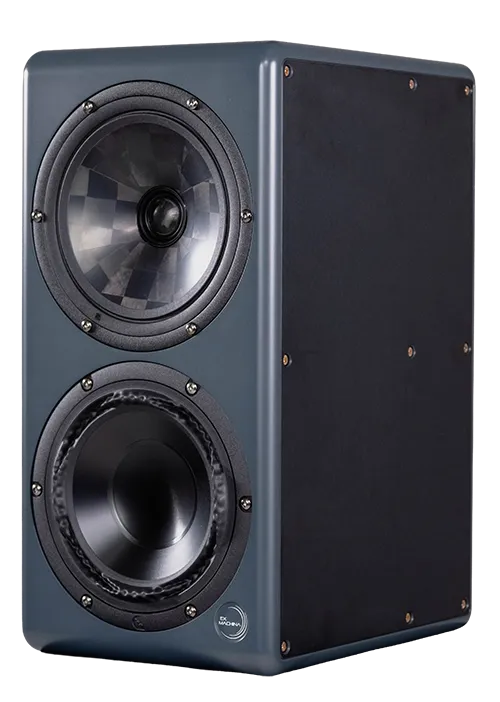

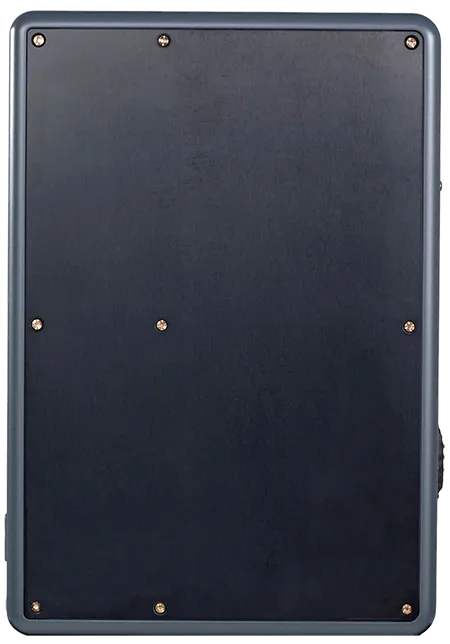

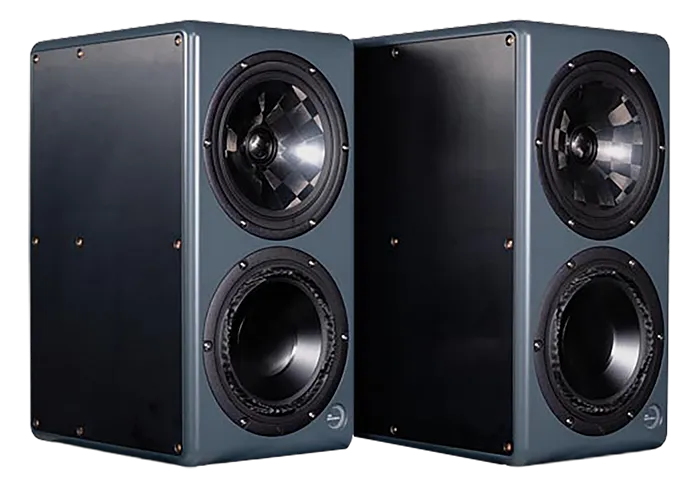

Traditional monitor cabinets attempt to balance mass, stiffness, and damping , MDF and plywood don’t excel at any of the three. Terra uses a composite assembly: high-loss materials where damping matters, ultra-rigid structures where stiffness matters. Each cabinet starts as a single aluminum extrusion with 16mm solid outer walls and 9mm integral internal cross-braces. It takes a 9-kiloton press to form. The result is a monocoque shell so massive and stiff that even at full output, driver back-pressure can’t induce ringing. Think of it like the difference between a wooden crate and an engine block , one flexes and vibrates, the other just doesn’t. Side panels are Durasein , chosen specifically for its ATH fill percentage, which provides the ideal acoustic impedance mismatch to the aluminum shell. A4-70 austenitic marine stainless steel fasteners with TiAlN PVD finish, mounted on 60A silicone gaskets and torqued to spec, maintain that impedance mismatch throughout the assembly.

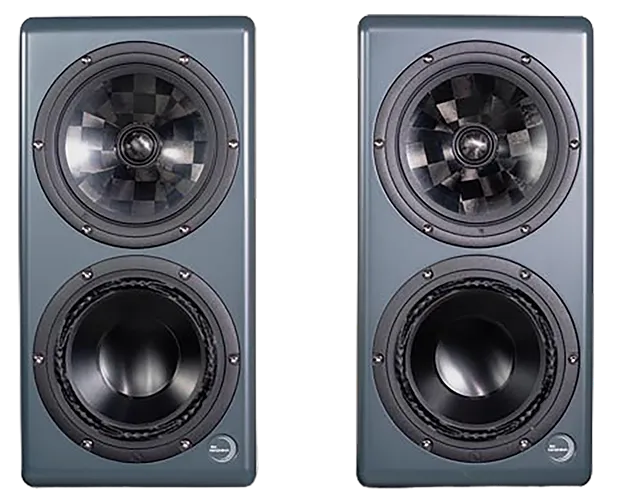

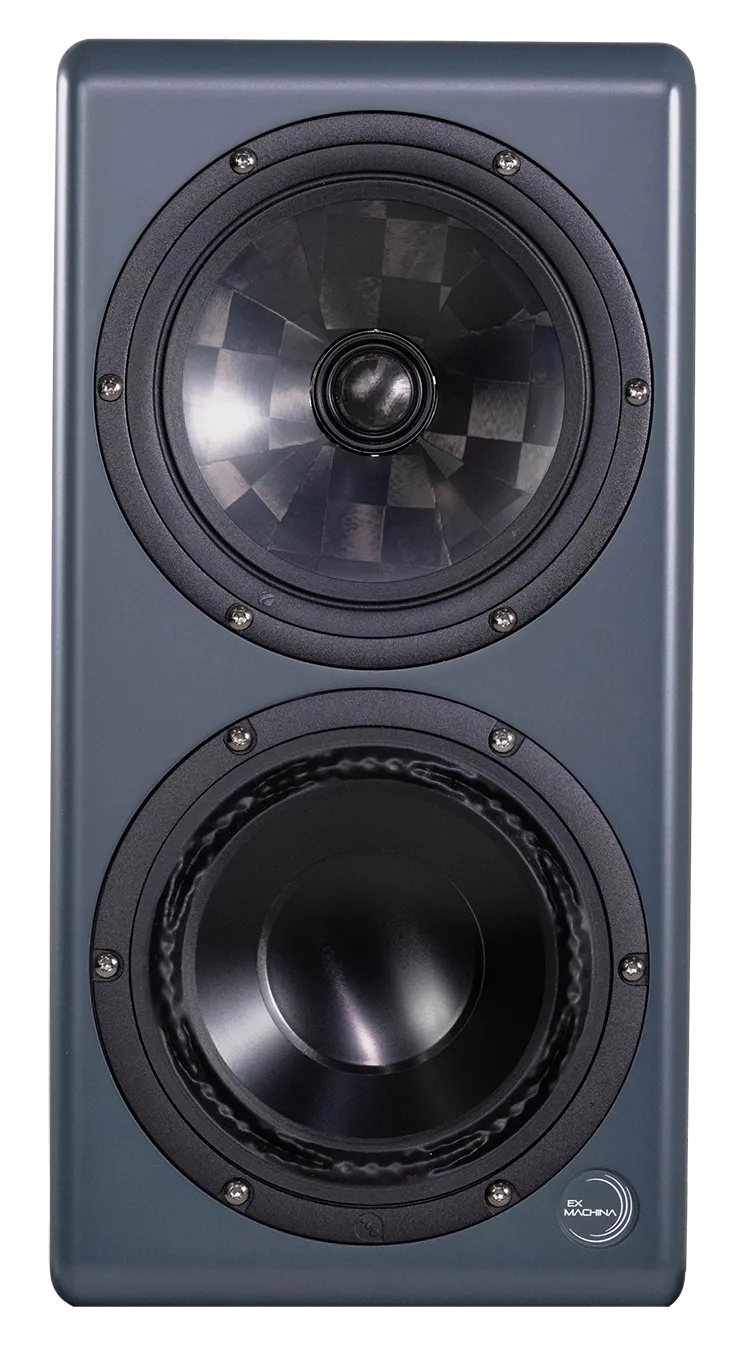

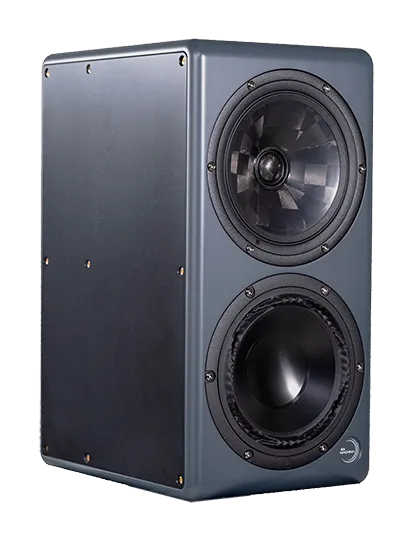

The 18cm coaxial midrange/tweeter is the third generation of our signature design. Custom TPCD diaphragms with improved fiber layup, FEA-optimized hybrid motor structure bringing THD down to 0.2% power average at 90dB. Automated fiber placement pushes tweeter breakup above 40kHz. The thin-lip underhung surround eliminates the phase cancellation that plagues most coaxial designs. The waveguide geometry loads the tweeter properly while maintaining the point-source acoustic center that gives Terra its imaging precision. The 18cm PuriFi PTT6.5W96-08 woofer uses custom concave aluminum diaphragms and a hybrid motor structure combining ceramic bulk flux with neodymium bucking sleeves. PuriFi’s unique surround geometry allows near-perfect symmetry on both sides of the stroke , uneven stiffness creates harmonic distortion and compression artifacts. This symmetrical design delivers exceptional linear excursion without those distortions. Both drivers are measured individually and linearized at the driver level before crossover application. This ensures acoustic output matches the DSP’s expectations precisely.

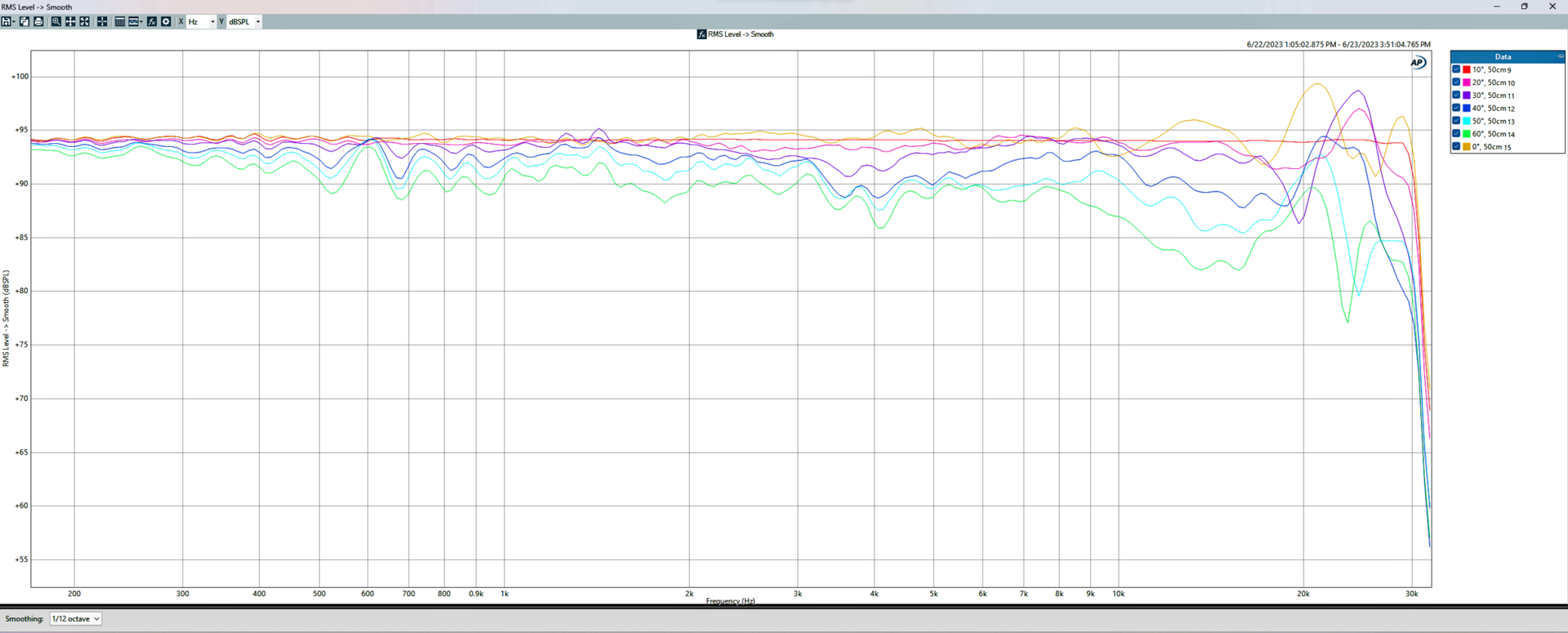

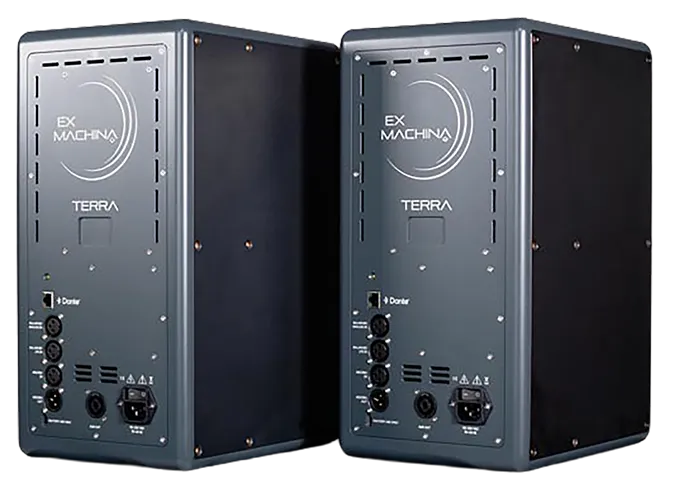

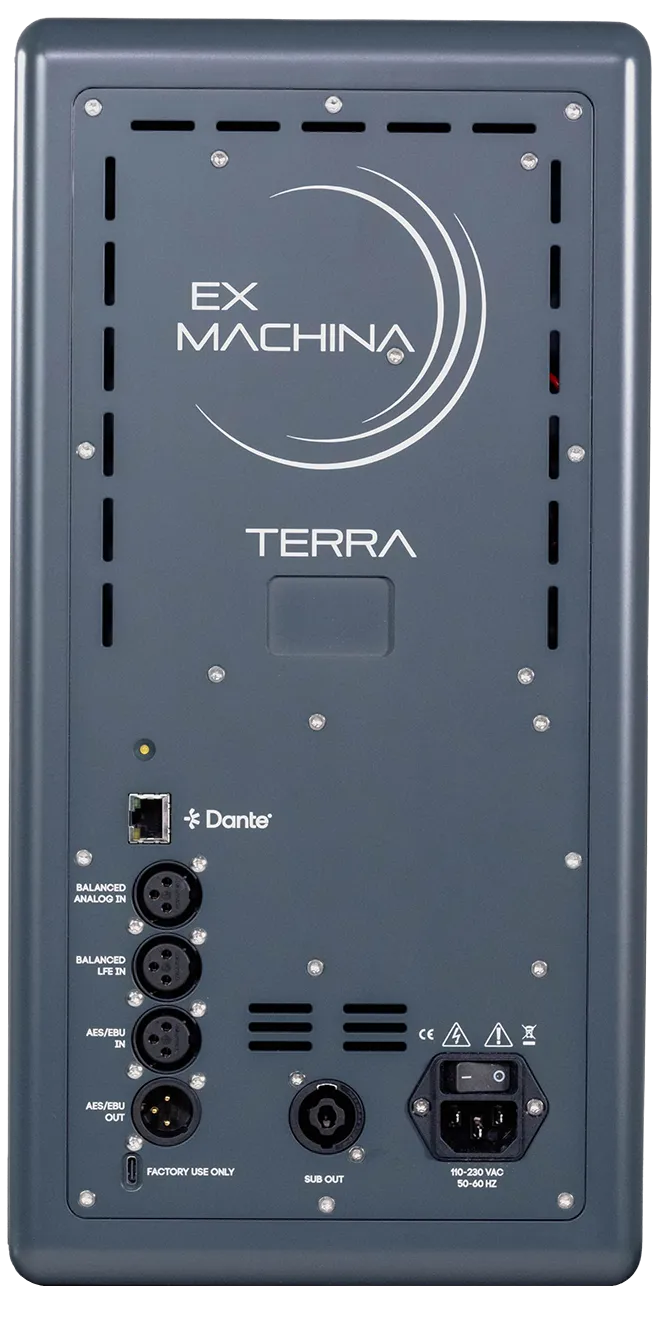

Terra uses third-generation Danville Signal Peregrine DSP architecture with an Analog Devices ADSP-21569 SHARC+ processor and ESP32 co-processor for WiFi control. Conversion via AKM’s AK4493SEQ DAC and AK5572EN ADC , chosen for measured performance, not marketing specs. Amplification is Hypex NcoreX , NCx252MP modules for the woofer and midrange, NCx-102EXT for the tweeter. The measured sum of all harmonic distortion from the entire electronics chain sits well below the acoustic distortion of the drivers themselves. Only the physical limitations of moving air set the distortion floor. Zero-phase crossovers at 200Hz and 2kHz. The calibration achieves ±1.5dB frequency response and ±15° phase deviation across the entire operating range. The ESP32 co-processor enables over-the-air firmware and calibration updates as our algorithms improve.
