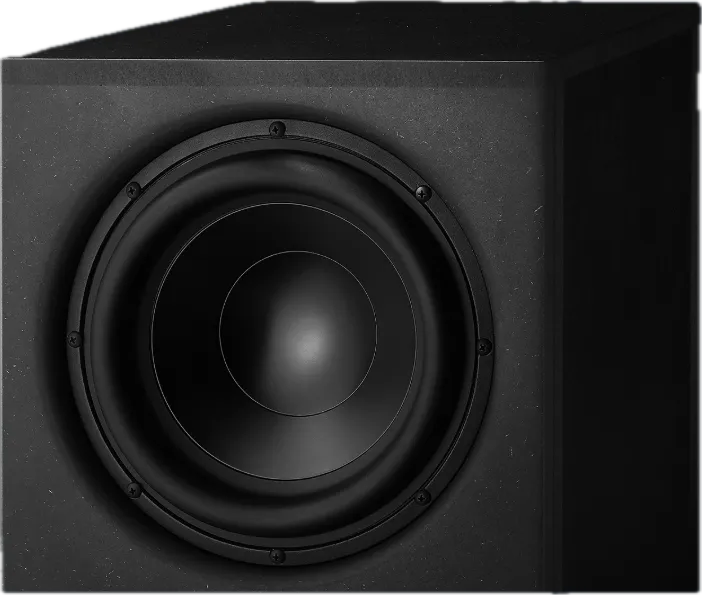

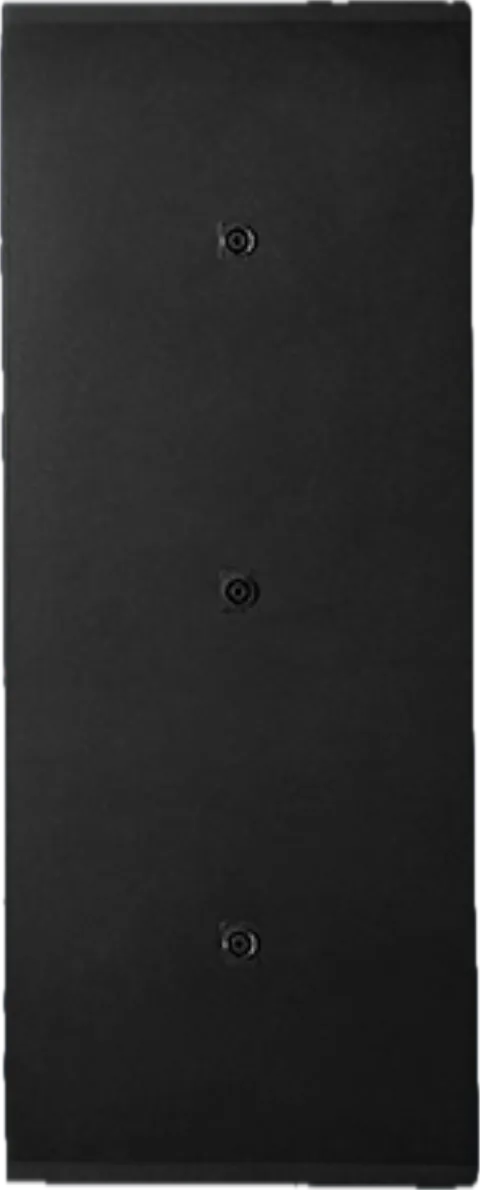

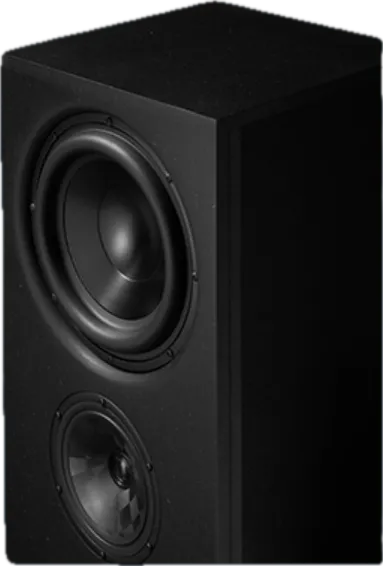

Sealed Valchromat cabinets, stiff, dense, and well damped, with none of the chuffing or group delay of ported designs. The 38mm laminated front baffle handles the impressive output of the twin 26cm subwoofers without deflection. Radiused insets for the subwoofers eliminate potential lip shadow from the tall-boy surrounds. Sealed design means the low-frequency rolloff is controlled and predictable. No port resonances, no one-note bass, no group delay artifacts in the critical 30-100Hz region where the most important decisions are made. What you hear is what’s there. Available in straight wall or rounded edge versions to accommodate either soffit-install or free-standing operation. The 2RU remote amplifier/DSP pack requires 1RU clearance top and bottom for ventilation.

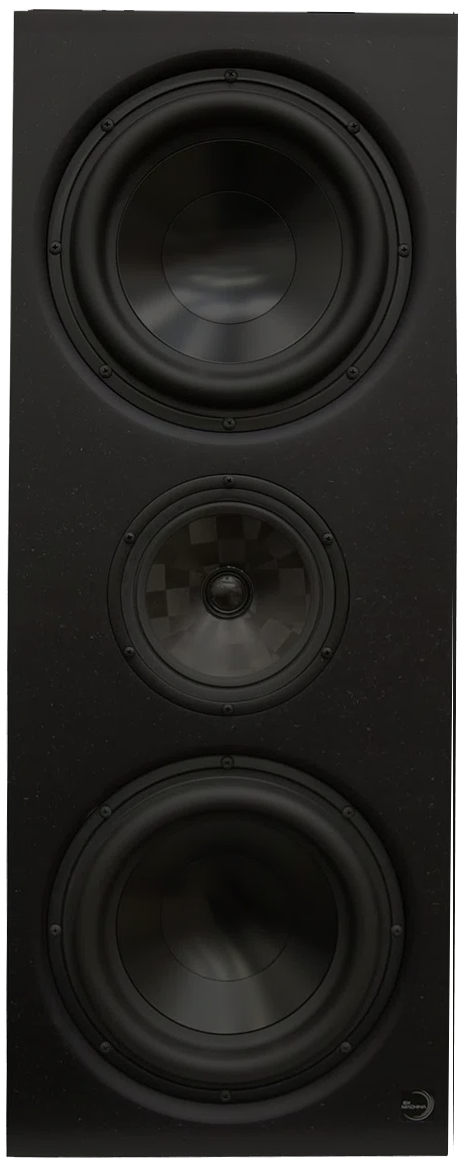

The 176mm coaxial midrange/tweeter uses Composite Sound Metamodal TeXtreme diaphragms: ultralight, ultra-stiff carbon fabrics with optimized fiber geometries to actively control and suppress resonances. Mathematically optimal midrange waveguide shape, underhung surround, and optimized point-source acoustic center alignment. State of the art super low distortion neodymium motor design. The twin 270mm SEAS Extreme Series subwoofers feature a unique split-gap twin ring radial neodymium motor architecture delivering exceptional symmetry and motor strength even at extreme excursions. Simply the best 26cm subwoofers we have heard or measured. Flagship AKM Velvet Sound conversion, Hypex Ncore amplification, 5th gen SHARC+ DSP. Every driver is measured individually and linearized before crossover application. The result: ±1dB frequency response from 28Hz to 30kHz, ±15° phase deviation from 20Hz to 30kHz.

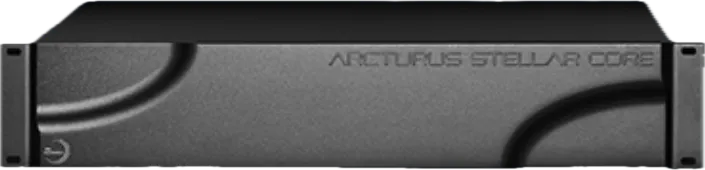

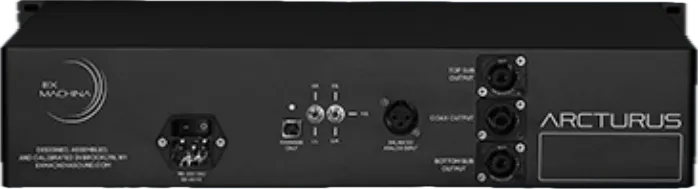

Amplification is Hypex NCAS500MP , 800W RMS for the subwoofers, 100W RMS each for midrange and tweeter. Conversion via flagship AKM Velvet Sound AK4493EQ DAC and AK5572EN ADC. 5th generation SHARC+ DSP (AD21565) processes the crossovers, calibration, and time alignment. The electronics live in an included 2RU remote amplifier/DSP pack , separate from the cabinet for installation flexibility. Input sensitivity is 8Vrms to full scale by default, with an optional high-gain 2Vrms configuration. 1RU clearance top and bottom required="required" for ventilation. Crossovers at 200Hz and 2kHz , digital 4th order phase corrected. Input options include 8Vrms standard sensitivity and 2Vrms optional high-gain configuration.
